What Is Finite Element Analysis Software — and Why It Matters in Geotechnics?
Finite element analysis software (FEA software) divides complex structures into small elements to predict stresses, deformations, and stability with high accuracy. In geotechnical engineering, these elements represent soil, rock, and soil–structure interaction — areas where traditional FEM tools often struggle with convergence and modelling complexity.
Finite element analysis software (FEA software) divides complex structures into small elements to predict stresses, deformations, and stability with high accuracy. In geotechnical engineering, the discretized domain includes soil, rock, and soil–structure interaction — areas where traditional FEM tools often struggle with convergence and modelling complexity. OPTUM GX addresses these challenges with its Optimization-Based FEM (OBFEM) engine, delivering fast, robust and reliable analysis in both 2D and 3D.
OPTUM GX, developed by Optum CE, is built on an advanced Optimization-Based Finite Element Method (OBFEM) that removes many of the limitations found in classical FEM. This enables faster ULS and SLS analysis, fewer modelling assumptions, and stable results without manual numerical tuning. As a finite element analysis software solution designed specifically for geotechnical modelling, it offers a more efficient and reliable workflow for both 2D and 3D design.
Why OPTUM GX Is Different from Traditional FEA Tools
Fast, Robust Solver: Our OBFEM engine eliminates traditional convergence headaches. No mesh tuning. No iterative elastoplastic loops. Just reliable results.- Integrated 2D & 3D Analysis: Switch seamlessly between plane strain, axisymmetry, and full 3D — all within the same FEA software environment.
- Cross-check 2D results with 3D in one workflow: Validate plane-strain assumptions instantly by switching to 3D without rebuilding the model. A unique capability in geotechnical FEA.
- Custom Automation with Python: Automate model setup, run batch analyses, or generate reports programmatically. Ideal for repetitive design tasks and parametric studies.
KEY FEATURES IN OPTUM GX FOR RETAINING WALL DESIGN
Optimization-Based FEM for Reliable ULS/SLS Analysis
OPTUM GX uses an Optimization-Based FEM (OBFEM) solver that computes ULS and SLS behaviour within a single workflow. Rather than relying on iterative elastoplastic solvers — which often fail to converge and require incremental load steps — OBFEM calculates failure directly, without assumptions about slip surfaces or simplified geometries.
This makes OPTUM GX one of the most stable and efficient finite element analysis software options for geotechnical design. Engineers get fast, convergent results with no manual tuning or numerical troubleshooting.
Integrated 2D & 3D Modelling for Realistic Soil Behaviour

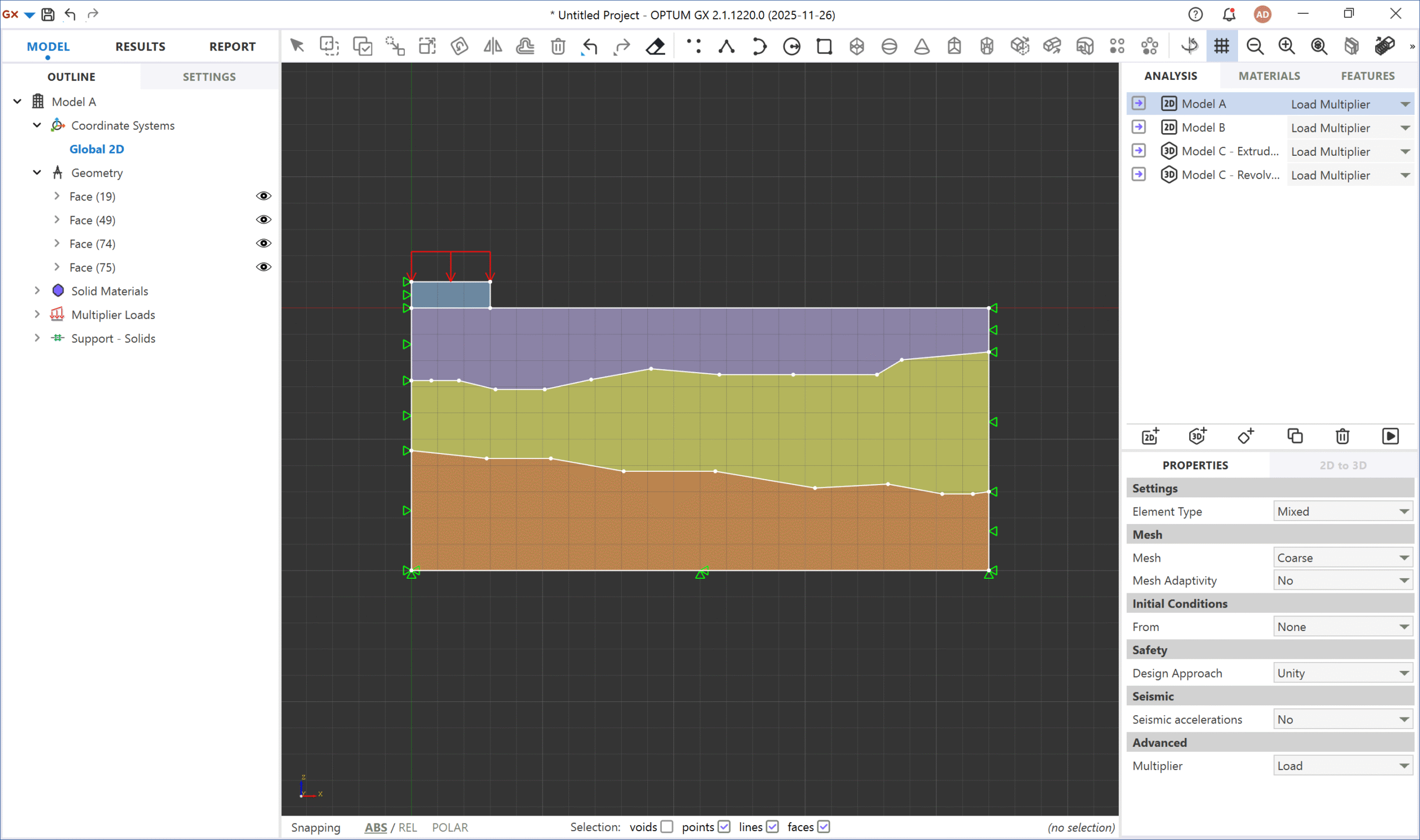

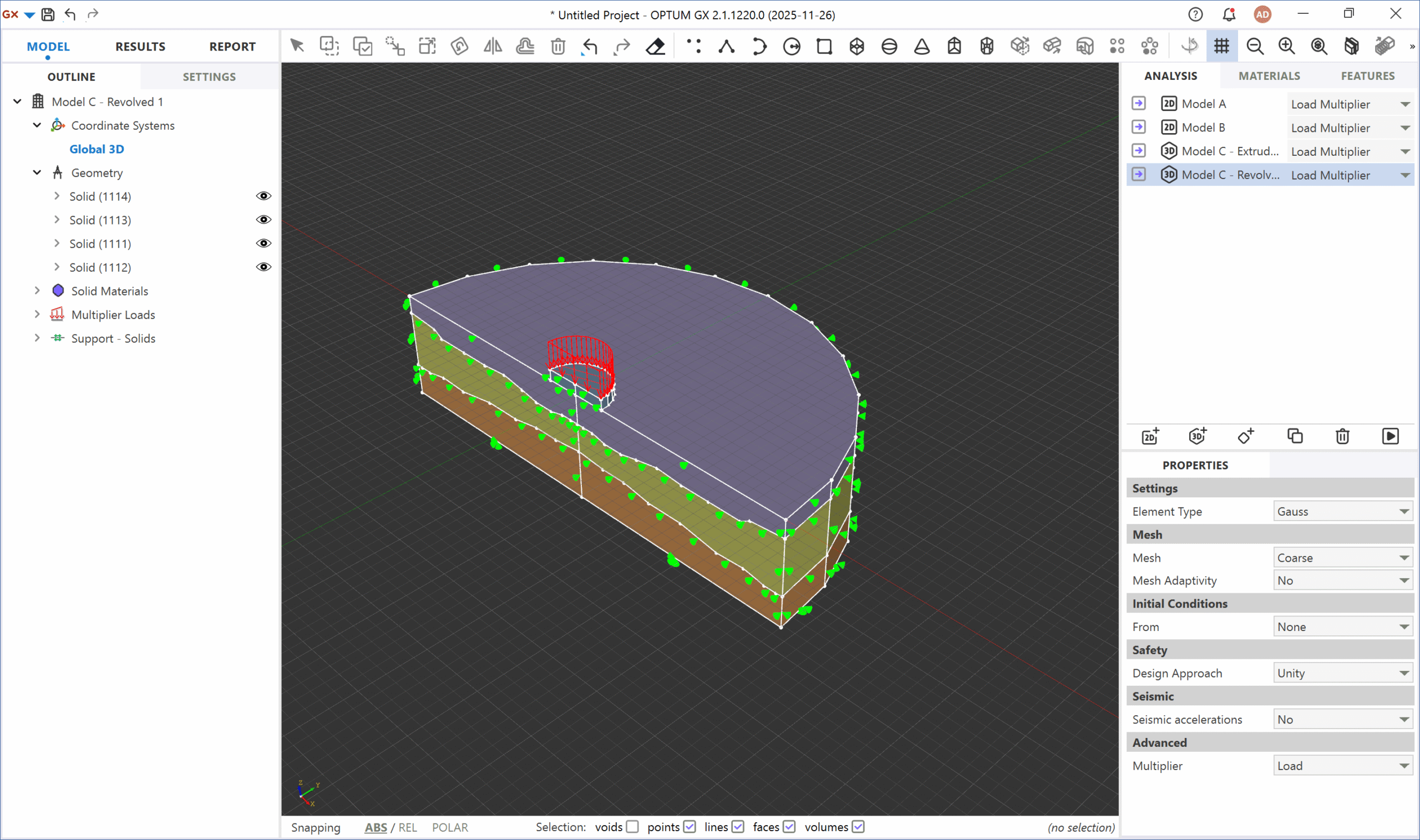

OPTUM GX allows users to switch between 2D and 3D modelling with a single click. Start in plane strain, assess axisymmetric scenarios, or expand to full 3D to capture real load spread, spatial effects, boundary conditions, and geometry variations.
Advanced meshing controls, staged construction, and support for complex geotechnical applications — including foundations, retaining walls, slopes, tunnels, and excavations — make OPTUM GX a powerful FEA software package for realistic soil–structure interaction.
Automated Reporting and Verification for Risk-Informed Design

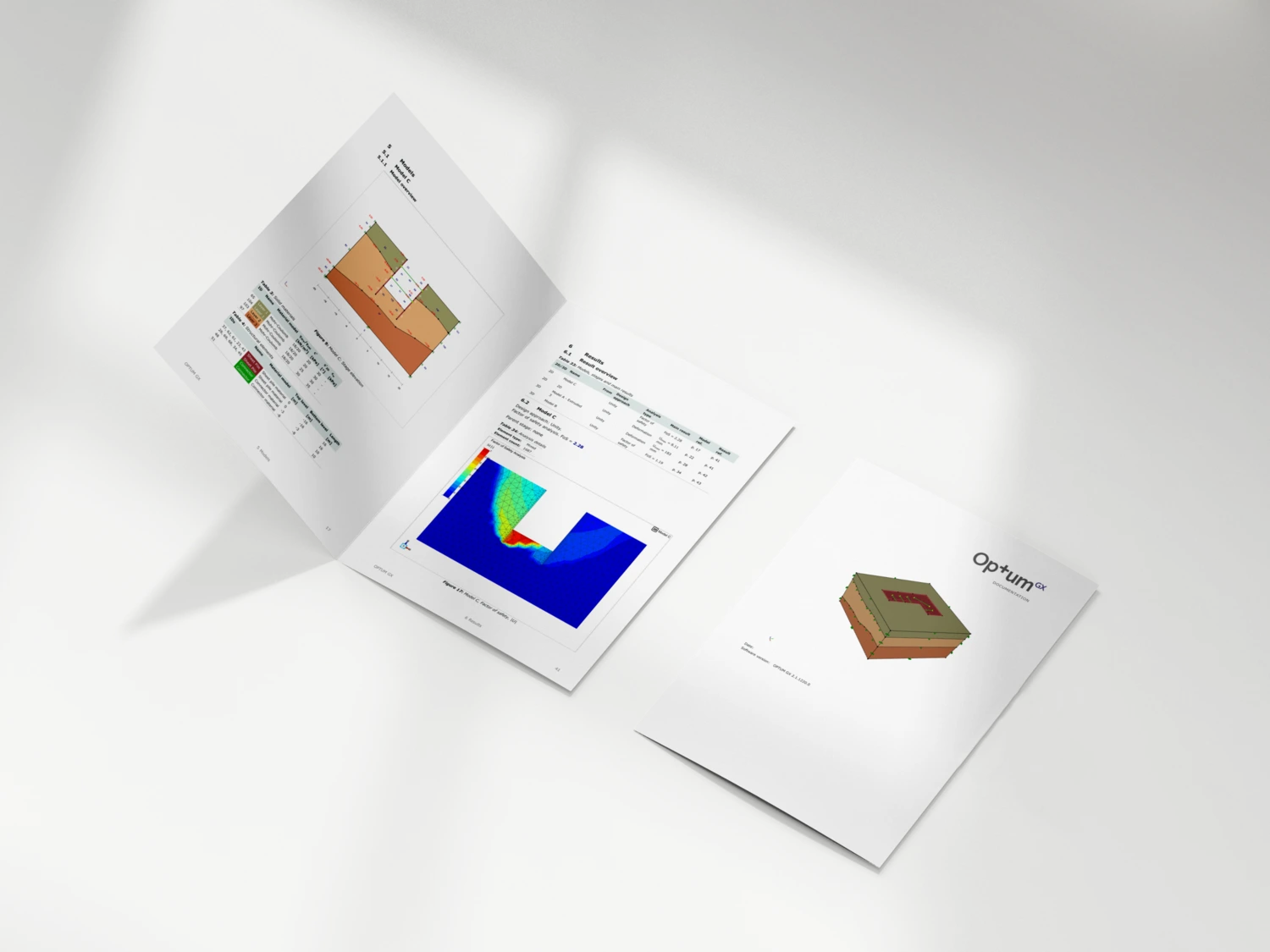

OPTUM GX includes a built-in reporting engine that produces clear, professional output with stress plots, displacement fields, safety factors, and code-check tables. Results can be documented in minutes — without manual charting or exporting figures.

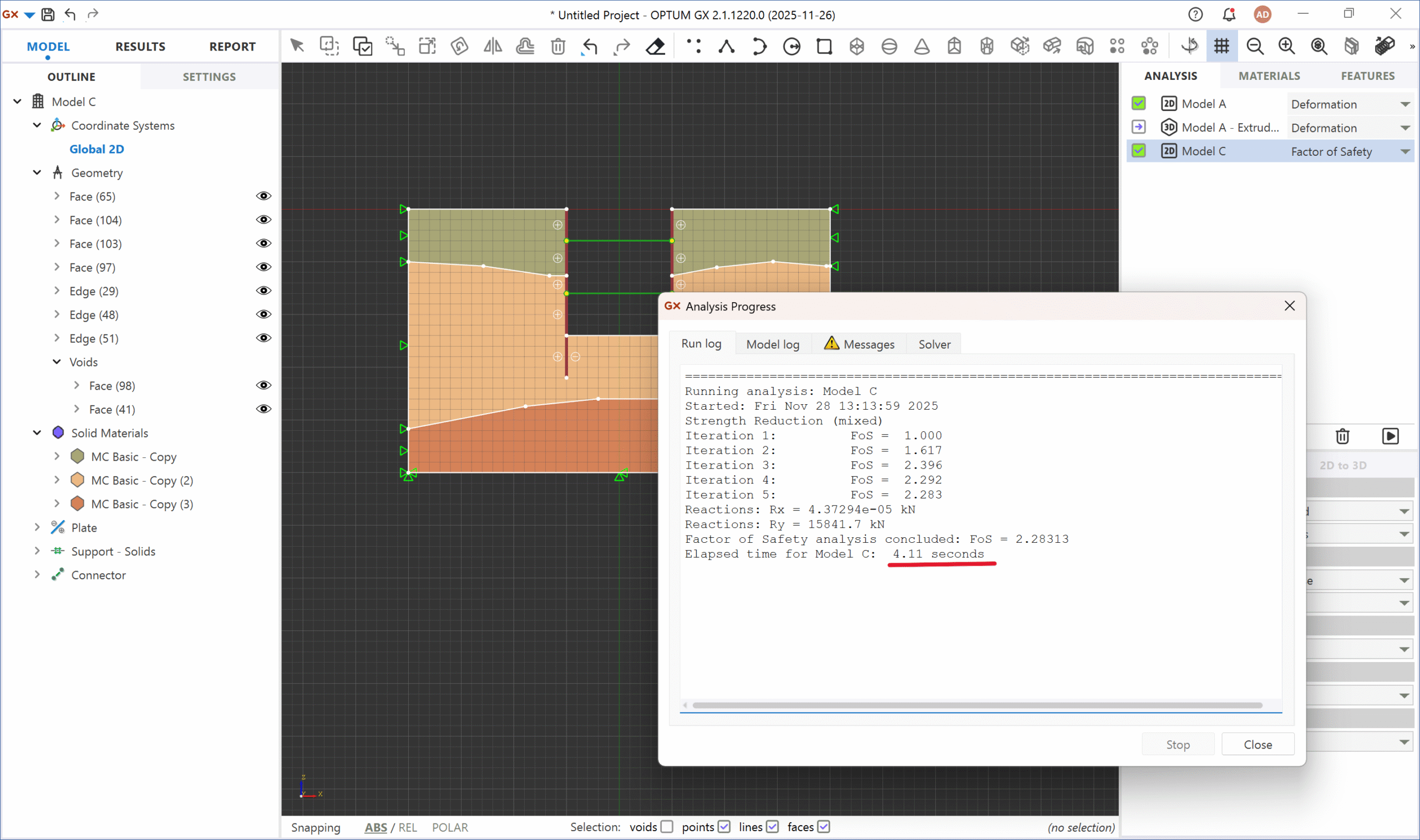

The Python API enables full automation of verification workflows, parameter studies, and alternative design checks.
Few geotechnical FEA tools offer this level of automation in a free trial, making OPTUM GX stand out among the best free FEA software options.
OPTUM GX
Try OPTUM GX — Free FEA Software for Geotechnical Design
You can test the full functionality of OPTUM GX with a free trial — no credit card required.
Simply click “Download Free Trial,” complete a short form, install, and begin running 2D and 3D geotechnical models immediately.
The trial includes advanced features such as OBFEM-based ULS/SLS analysis, integrated 2D/3D modelling, Python automation, staged construction, meshing tools, and automated PDF reporting.
For engineers searching for the best free FEA software in geotechnics, OPTUM GX provides everything needed to explore the full workflow before committing.
Download Free Trial
How OPTUM GX Compares to Other Geotechnical FEA Solutions
Many traditional FEA tools were originally developed for structural or mechanical engineering and later adapted for geotechnical use. This often leads to complex setups, heavy IT requirements, and unstable convergence.
OPTUM GX is built specifically for geotechnics — meaning faster setup, fewer assumptions, no mesh tuning, and stable ULS/SLS results in one consistent workflow.
Unlike general-purpose FEM engines, OPTUM GX handles soil nonlinearity, staged construction, and 3D ground behaviour natively.
See our detailed feature comparison table below.
Comparison of Geotechnical Calculation Methods: LEM, FEM, and FELA
Handles true collapse load
No need to guess or iterate failure surface
No mesh refinement tuning needed
Upper/Lower bound solution
Accurate for non-circular slip surfaces
Rapid Analysis
Suitable for automation/parametric analysis
Easy for non-expert
LEM
Limited
Limited scripting
Limited
FEM
Approximate
Slow for batch runs
FELA (OPTUM GX)
Frequently ASked Questions
Can’t find what you’re looking for? Contact us here.
